Dry-in
$100/sf$500,000
5,000 sf under roof×$100/sf
Structure on the plan footprint, roof, wall skin, weather-tight close-in, openings framed. You take the inside on your own clock.
04of 5 · Shop
Prairie Shop
50′ × 100′ clear-span shop, 16′ sidewalls, five overhead doors.
50′ × 100′ · 16′ low side · 5,000 sf
5,000sf clear-span floor
50′ × 100′footprint
16′ / 21′sidewall / ridge
5overhead doors
The two anchors
What this footprint prices at
No living space, no compromises in the middle of the floor. Five thousand square feet of clear span with 16-foot sidewalls and a 21-foot ridge, five overhead doors, walk doors on both long walls, and 18-inch overhang all the way around. This is the set people start from when the building has to work for a living.
Turnkey
$250/sfNot on this model
no conditioned living drawn
Add a living wing later and turnkey runs $250/sf on that living square footage only — the shop stays on the dry-in line.
Planning band — not a bid. Travel, eave height, door count, foundation path, site work and finish level all move the number. A custom print set of your own is a separate design deposit.
The drawing set
Off the real print set
Straight off the sheets our crews build from. Title blocks are cropped — the plans belong to the families who paid for them, so we publish the layout, never the name. Tap any sheet to enlarge it.
- 5,000 sf clear-span floor — no interior posts in the work bays
- 16′ low-side sidewall, 21′ ridge
- Five overhead doors plus walk doors both long walls
- 18″ overhang all around; covered entry on the corner
Sheet index
What’s in the Prairie Shop set
5 drawn sheets, plus the two scope sheets that ride on every Oakmont quote. If it isn’t on the In list, it isn’t in the number.

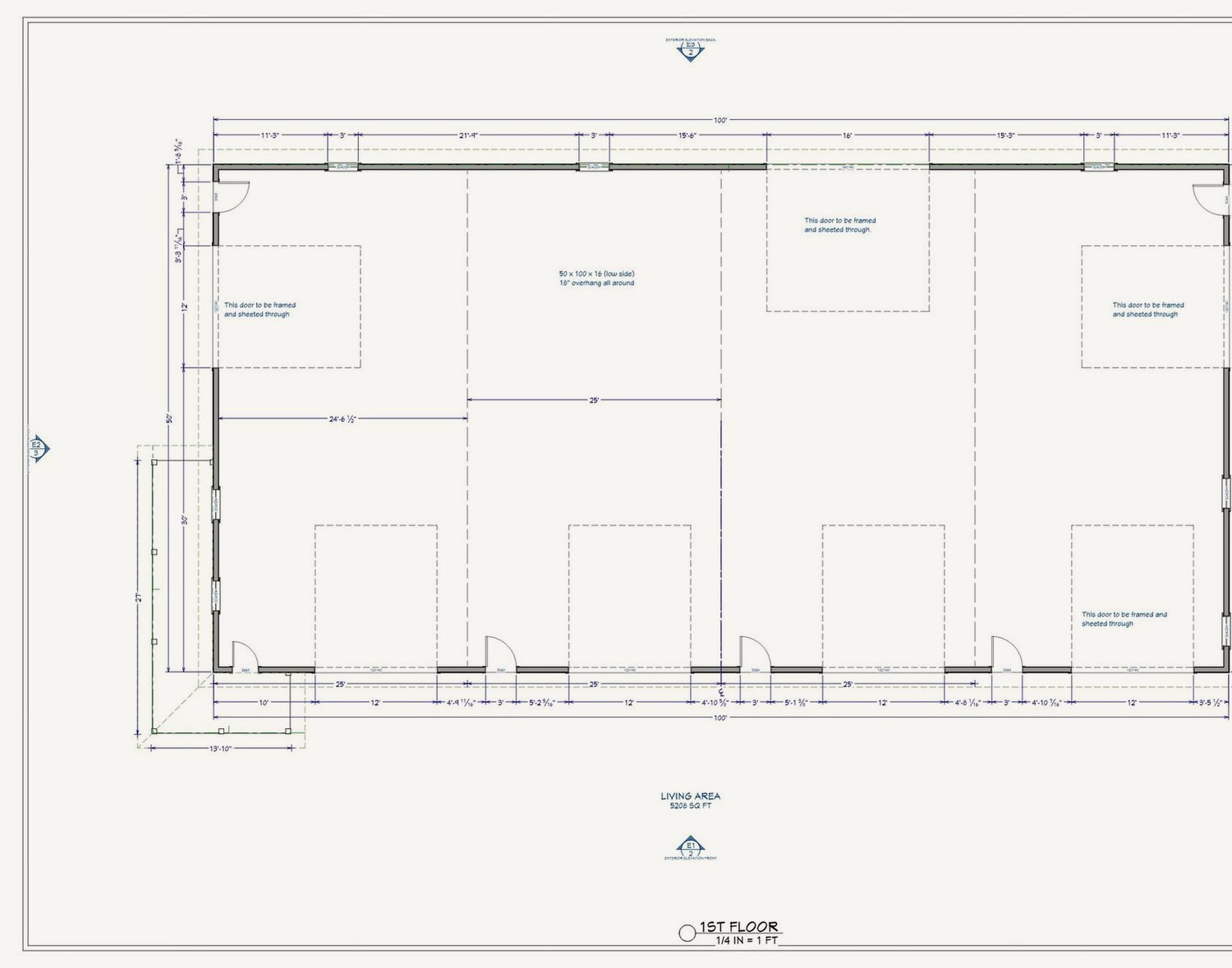

- P-1Floor plan

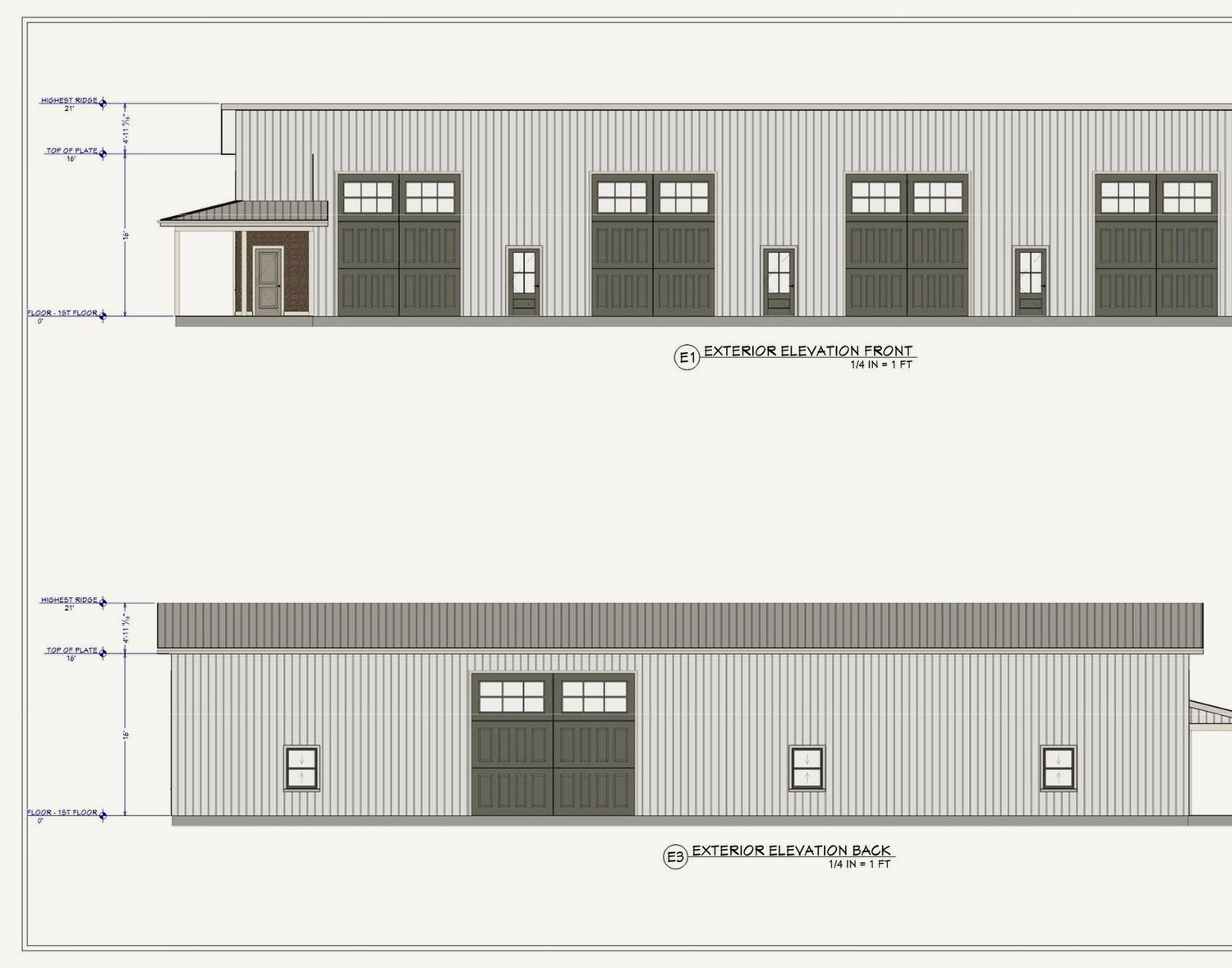

- E-1Elevation — front
- E-2Elevation — right
- E-3Elevation — back
- E-4Elevation — left
- S-DDry-in scope — written In / Out
- S-TTurnkey scope — written In / Out
Default scope
S-D and S-T, in writing
Two sheets, plain language, same on every quote we hand out. This is what keeps a planning band from turning into a surprise.
Dry-in
$100/sfIn
- Structure per plan footprint
- Roof, wall skin, weather-tight close-in
- Openings framed per plan
- Exterior trim and eaves as written
- Crew and basic travel in band
Out
- Interior finish, flooring, cabinets, paint
- Insulation / liner / heat unless listed
- Full living MEP · kitchen and baths
- Foundation if by others · well, septic, drive
Turnkey
$250/sfIn
- Dry-in path for the living portion
- Conditioned living to a written finish level
- Partitions, insulation, basic finishes
- MEP for the listed beds, baths and kitchen
- Interior doors, trim, paint class as written
- Shop wing scoped and priced separately
Out
- Upgrades not on paper
- Specialty appliances and furniture
- Land, well, septic, long drive, utility fees
- Anything off the signed In list → change order
On a pure shop, S-T only comes into play if you add conditioned living — then it is $250/sf on that living square footage, and the shop stays on the dry-in line.
Keep looking
Other plan sets
Same two anchors on every one. Swap a footprint in or out and we redraw from whichever set lands closest to what you are picturing.
Free, No-Obligation Quote
Want the Prairie Shop on your land?
Tell us dry-in or turnkey, your site, and your timeline. Shaun follows up with real next steps — no instant checkout.
