Dry-in
$100/sf$549,800
5,498 sf under roof×$100/sf
Structure on the plan footprint, roof, wall skin, weather-tight close-in, openings framed. You take the inside on your own clock.
03of 5 · Cabin barndo
Ridge Cabin
100′ × 50′ under one gable — two-level cabin living plus a 3,540 sf garage.
100′ × 50′ · 16′ sidewalls · two levels
2,958sf conditioned living
5,498sf under roof
100′ × 50′footprint
16′sidewalls
The two anchors
What this footprint prices at
A dark cabin front on a working footprint. The living end takes 1,458 square feet on the main and 1,500 up, with a 500 sf covered porch across the gable; the rest of the 100-foot run is a 3,540 square foot garage on the same slab line. Sixteen-foot sidewalls, 18-inch floor trusses, 18-inch roof overhang.
Turnkey
$250/sf$739,500
2,958 sf conditioned living×$250/sf
Dry-in plus the living space finished to a written level — partitions, insulation, MEP, doors, trim, paint. Garage and shop square footage never rides on this line.
Planning band — not a bid. Travel, eave height, door count, foundation path, site work and finish level all move the number. A custom print set of your own is a separate design deposit.

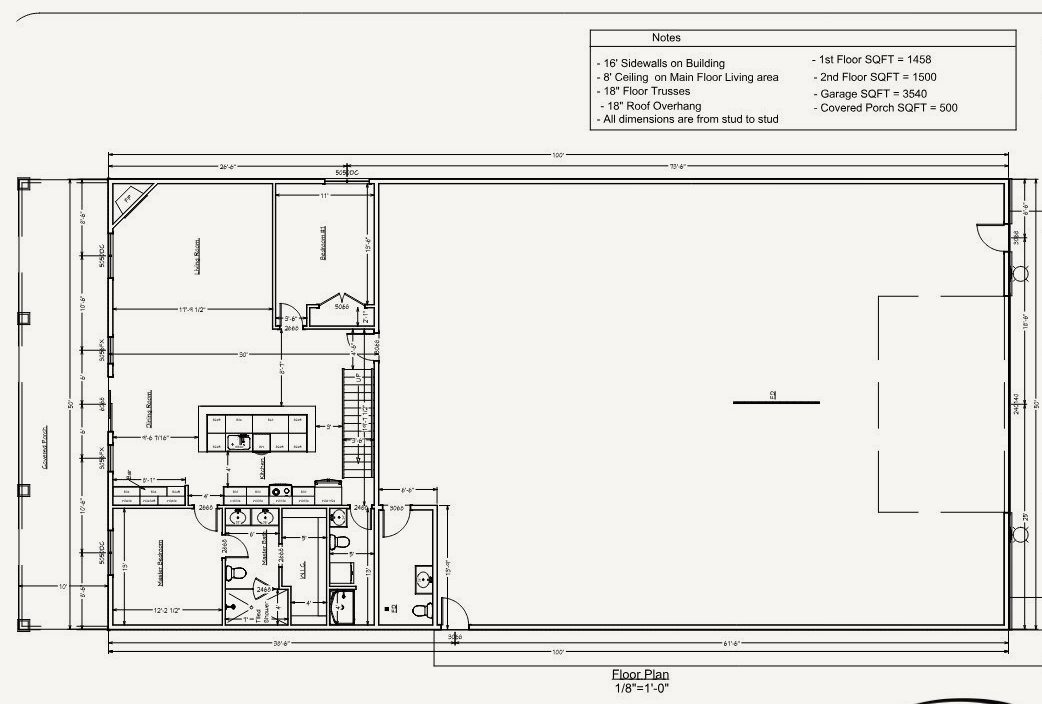

The drawing set
Off the real print set
Straight off the sheets our crews build from. Title blocks are cropped — the plans belong to the families who paid for them, so we publish the layout, never the name. Tap any sheet to enlarge it.
- Living 2,958 sf — 1,458 sf main, 1,500 sf up
- Garage / shop 3,540 sf on the same slab line
- 16′ sidewalls, 18″ floor trusses, 18″ roof overhang
- 500 sf covered porch across the living end
Sheet index
What’s in the Ridge Cabin set
7 drawn sheets, plus the two scope sheets that ride on every Oakmont quote. If it isn’t on the In list, it isn’t in the number.

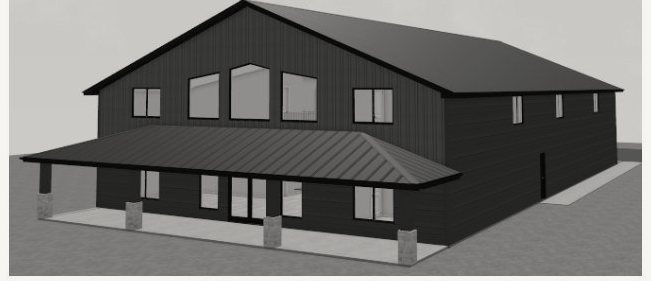

- 1Cover / 3D
- 2Main floor plan
- 3Foundation plan
- 4Second floor plan

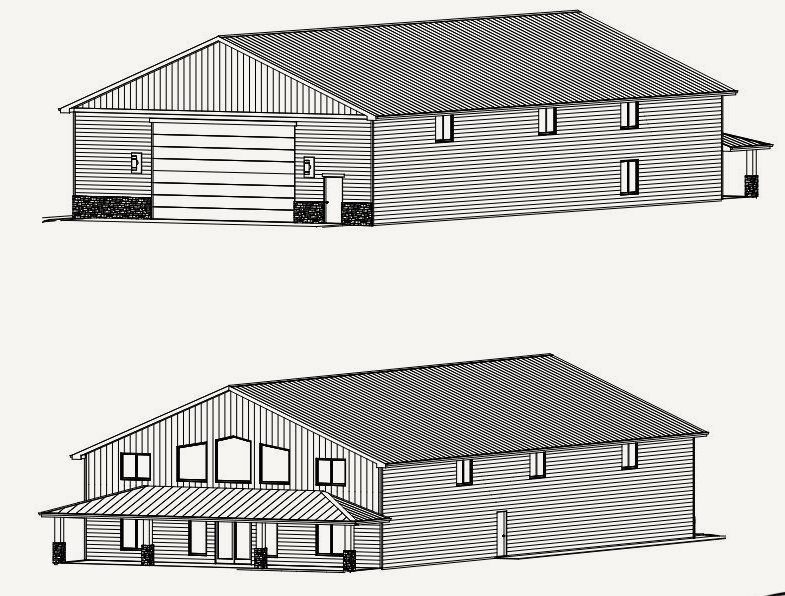

- 5Elevations
- 6Elevations
- 73D views
- S-DDry-in scope — written In / Out
- S-TTurnkey scope — written In / Out
Default scope
S-D and S-T, in writing
Two sheets, plain language, same on every quote we hand out. This is what keeps a planning band from turning into a surprise.
Dry-in
$100/sfIn
- Structure per plan footprint
- Roof, wall skin, weather-tight close-in
- Openings framed per plan
- Exterior trim and eaves as written
- Crew and basic travel in band
Out
- Interior finish, flooring, cabinets, paint
- Insulation / liner / heat unless listed
- Full living MEP · kitchen and baths
- Foundation if by others · well, septic, drive
Turnkey
$250/sfIn
- Dry-in path for the living portion
- Conditioned living to a written finish level
- Partitions, insulation, basic finishes
- MEP for the listed beds, baths and kitchen
- Interior doors, trim, paint class as written
- Shop wing scoped and priced separately
Out
- Upgrades not on paper
- Specialty appliances and furniture
- Land, well, septic, long drive, utility fees
- Anything off the signed In list → change order
Keep looking
Other plan sets
Same two anchors on every one. Swap a footprint in or out and we redraw from whichever set lands closest to what you are picturing.
Free, No-Obligation Quote
Want the Ridge Cabin on your land?
Tell us dry-in or turnkey, your site, and your timeline. Shaun follows up with real next steps — no instant checkout.
